Saga real-time devices
Saga devices: Every temperature your product ships at, from ambient to liquid nitrogen
Proven at pharma scale. Reusable devices that report over the cellular network and find their location by cellular and Wi-Fi, calibrated to NIST-traceable standards, approved by 200+ airlines, and managed for you from first shipment to recalibration.
Operating range
Saga-P Standard−20 to +50 °C

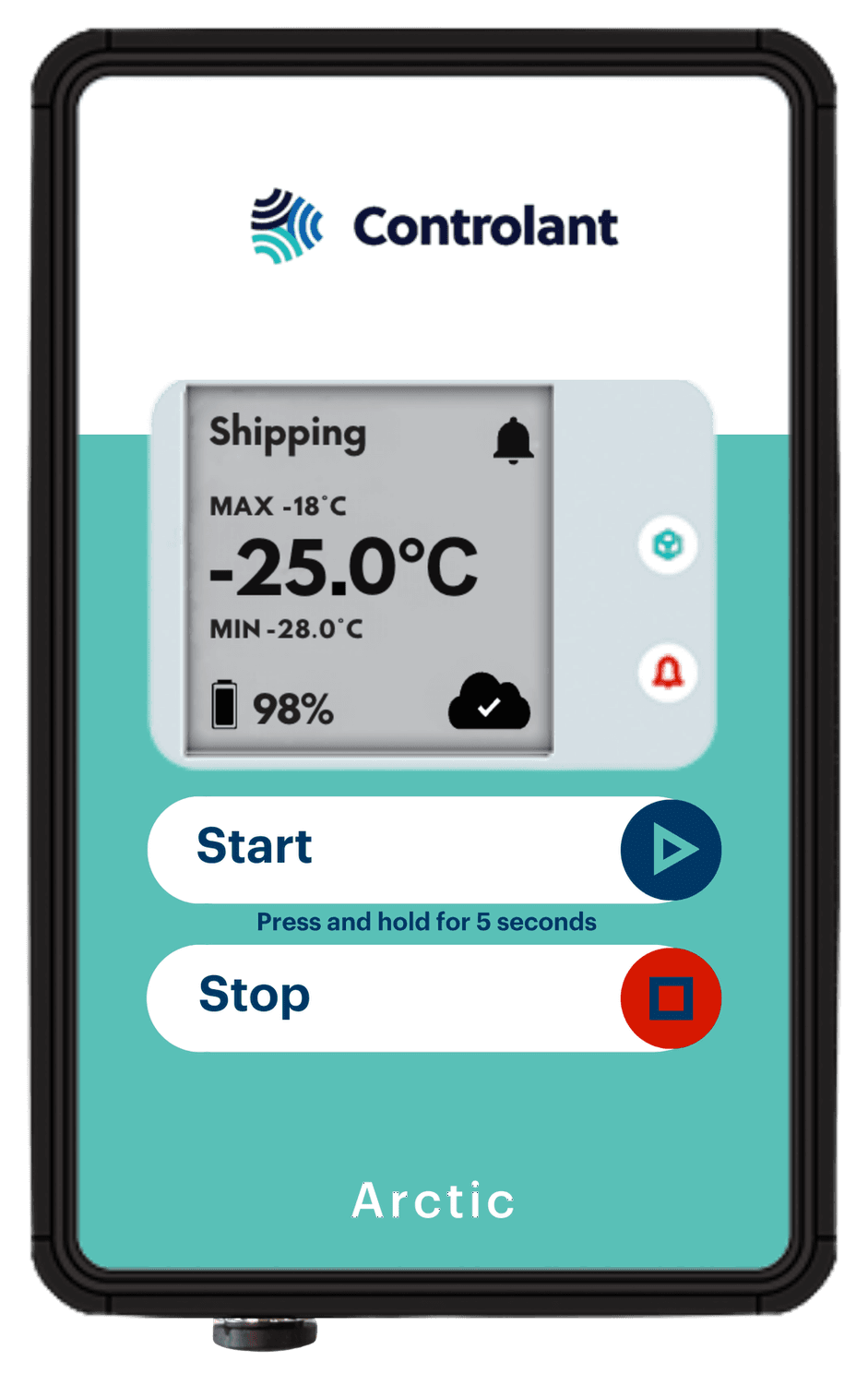

Saga Arctic−30 to +30 °C

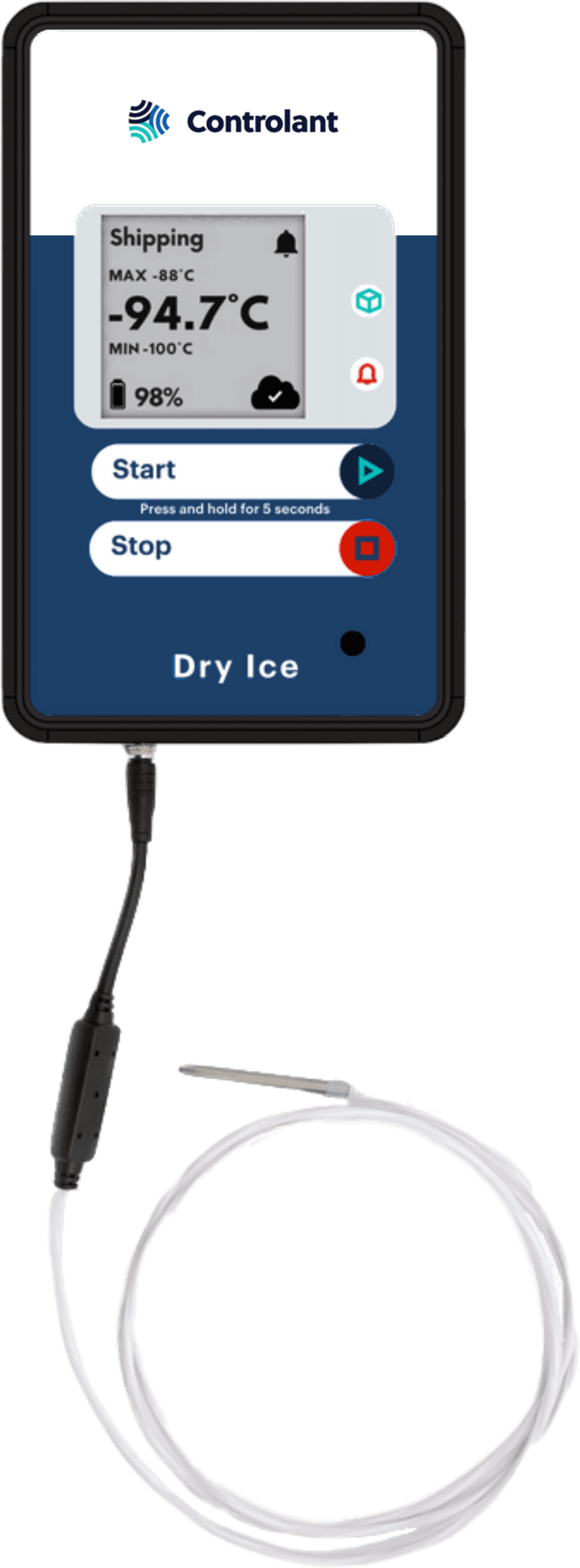

Saga Dry Ice−95 to +50 °C via probe

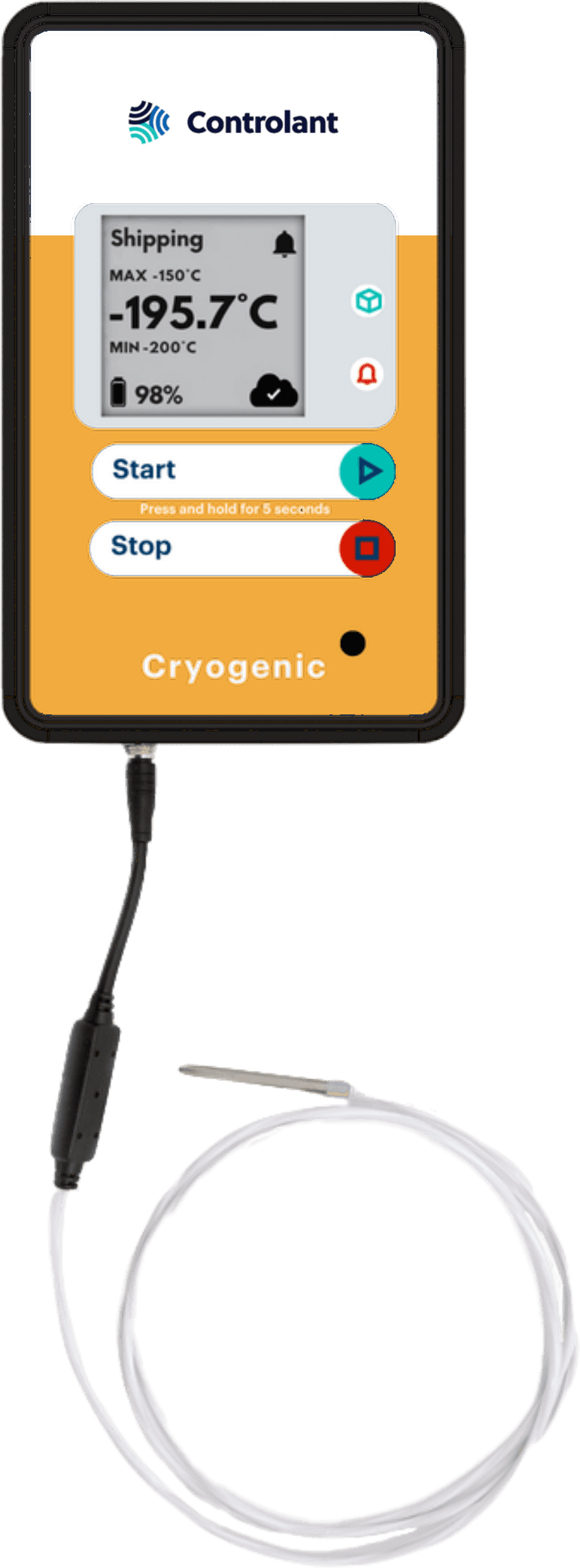

Saga Cryogenic−200 to +50 °C via probe
- Device sensor
- PR-T80 probe
- Scale changes at each break
| Model type | Operating range | Measured by | Accuracy |
|---|---|---|---|
| Saga-P Standard | −20 °C to +50 °C | Device sensor | ±0.5 °C at −10 to +45 °C, ±1 °C outside that range |
| Saga Arctic | −30 °C to +30 °C | Device sensor | ±1 °C at −30 to −10 °C, ±0.5 °C at −10 to +10 °C, ±1 °C at +10 to +30 °C |
| Saga Dry Ice | −95 °C to +50 °C | PR-T80 probe | ±1.0 °C |
| Saga Cryogenic | −200 °C to +50 °C | PR-T80 probe | ±1.4 °C at −200 to −90 °C, ±1 °C at −90 to 0 °C |
- Model types
- 4
- One housing
- Family range
- −200 to +50 °C
- Below −30 °C through the probe
- Weight
- 194 to 197.5 g
- IP rating
- IP54 to IP55
Which Saga
Pick the band your product ships at

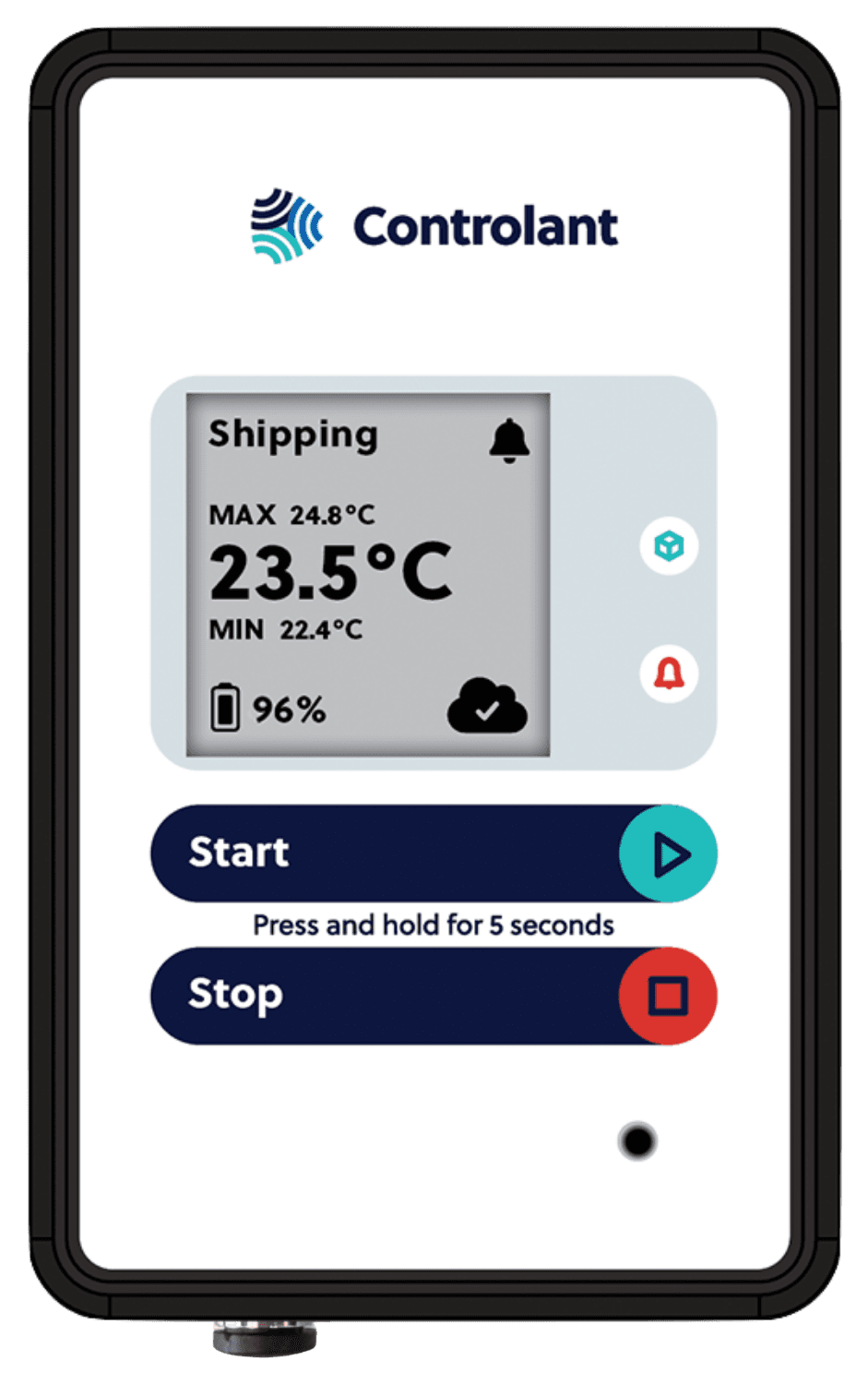

Saga-P Standard
Refrigerated and room-temperature pharma is where most Saga devices spend their working lives. Accurate to ±0.5 °C from −10 to +45 °C, on any lane. It ships with the probe port capped and reads temperature at the housing.
- Operating range
- −20 to +50 °C
- Calibrated at
- −20, +15, +50 °C
- Accuracy
- ±0.5 °C at −10 to +45 °C, ±1 °C outside that range
- Battery life (12 h wake-up)
- 110 days
Compare the Saga family
Four model types. Every row of the datasheet, side by side
Scroll sideways for the remaining columns.
| Model type | Saga-P StandardCold and ambient, every lane | Saga ArcticDeep freeze at −30 °C | Saga Dry IceDry ice to −95 °C, through the probe | Saga CryogenicLiquid nitrogen to −200 °C, through the probe |
|---|---|---|---|---|
| Probe | None | None | PR-T80 | PR-T80 |
| Standard operating range | −20 to +50 °C | −30 to +30 °C | −95 to +50 °C | −200 to +50 °C |
| Calibration points | −20, +15, +50 °C | −30, +5, +30 °C | −80, −40, 0 °C on the probe | −196, −80, −40, 0 °C on the probe |
| Accuracy | ±0.5 °C at −10 to +45 °C±1 °C outside that range | ±1 °C at −30 to −10 °C±0.5 °C at −10 to +10 °C±1 °C at +10 to +30 °C | ±1.0 °C | ±1.4 °C at −200 to −90 °C±1 °C at −90 to 0 °C |
| Resolution · long-term drift | 0.1 °C · under 0.1 °C per year | 0.1 °C · under 0.1 °C per year | 0.1 °C · under 0.1 °C per year | 0.1 °C · under 0.1 °C per year |
| Recording interval | Every 10 minutes, fixed | Every 10 minutes, fixed | Every 10 minutes, fixed | Every 10 minutes, fixed |
| Battery life at 1 h · 12 h · 24 h | 20 days · 110 days · over 110 days | 10 days · 55 days · over 55 days | 20 days · 110 days · over 110 days | 20 days · 110 days · over 110 days |
| Battery | 2500 mAh rechargeable NiMH | 1200 mAh rechargeable NiMH | 2500 mAh rechargeable NiMH | 2500 mAh rechargeable NiMH |
| Dimensions | 25 × 61 × 103 mm | 25 × 61 × 103 mm | 25 × 61 × 98 mm | 25 × 61 × 98 mm |
| Weight | 197.5 g | 194 g | 194 g | 194 g |
| Ingress protection | IP55 | IP55 | IP54 | IP54 |
| Datasheet | ||||
| Page | Saga-P Standard | Saga Arctic | Saga Dry Ice | Saga Cryogenic |
Every Saga
What every model shares, whichever range it covers
E Ink display, status LEDs
Alarm state, current, minimum and maximum temperature readable on the unit itself.
Rechargeable NiMH, not dangerous goods
At least 70 charge cycles. Charged and backed up over the attached USB-A cable.
Automatic flight mode
Approved by over 200 airlines. IATA, FAA and EASA compliant.
Global 4G, 3G and 2G
Location with every report, by cellular triangulation and 2.4 GHz Wi-Fi detection. Geofences from 250 m to 15 km.
150 days of memory
21,600 readings at 10-minute intervals logged on the device, and reported once it is back in coverage.
Excursion wake-up and light sensor
Reports the moment temperature leaves its range, regardless of schedule. A change in temperature or light triggers an alert.
CE, FCC, IC, NOM, KC
Calibration certificate for every device, in the platform.
Probe and accessories
What ships with the device
PR-T80 digital probe
One probe, two calibrations
The Dry Ice version is calibrated at −80, −40 and 0 °C; the Cryogenic version adds −196 °C. Saga Dry Ice and Saga Cryogenic each ship with their probe, calibrated for that model.
- Probe length
- 1.0 m, plus 0.12 m of cable
- Diameter
- 4.0 mm (Dry Ice) · 2.3 mm (Cryogenic)
- Connector
- IEC 61076-2-104, screw lock, IP67
- Sensor
- One, 0.1 °C resolution

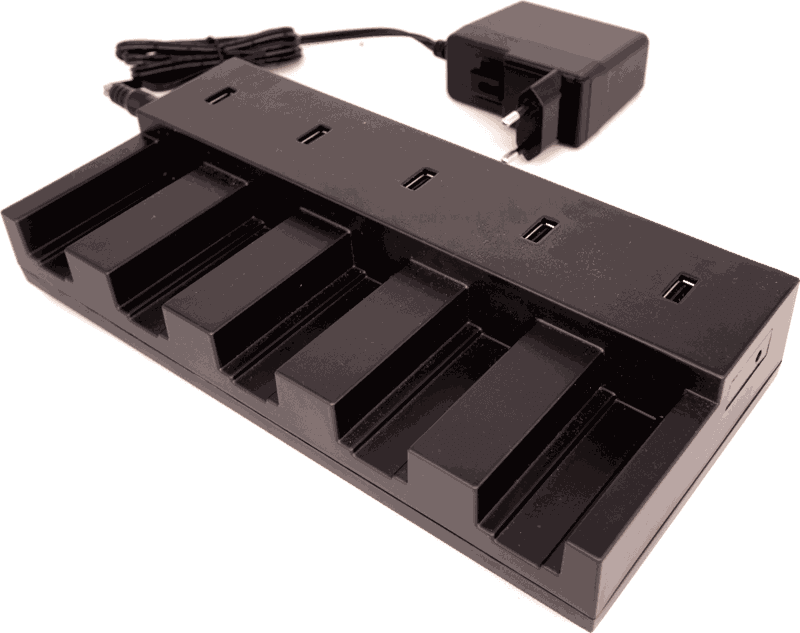

Saga charging station
Five devices at once
Charges any Saga or Saga-P over its attached USB-A cable. An LED shows power.
- Ports
- 5 × USB-A, 750 mA each
- Size
- 249 × 119 × 45 mm, 240 g
- Power
- Universal input, 36 W adapter
- Approvals
- CE, FCC, ISED
Questions about Saga devices
What network do Saga devices use?
Saga devices report over the cellular network, on 4G, 3G, and 2G, roaming globally. Location is resolved with every report from cellular triangulation and 2.4 GHz Wi-Fi detection, so it does not depend on a satellite fix. Saga Card, the credit-card format piloting from Q1 2027, uses LTE-M and NB-IoT. There is no gateway, reader or short-range network to install at either end of a lane.
Are Saga devices reusable?
Yes. Saga is a reusable device on a rechargeable cell, not a single-use logger. Controlant runs the return logistics, recalibration and charging as a managed service, and a device dashboard shows what is in circulation, its health status, its recalibration due date and its usage.
What temperature ranges do Saga devices cover?
The family covers −200 to +50 °C. Saga-P Standard covers −20 to +50 °C, Saga Arctic covers −30 to +30 °C, Saga Dry Ice reads to −95 °C through the PR-T80 probe, and Saga Cryogenic reads to −200 °C through the same probe. For each model's calibration points and accuracy, see its datasheet and the comparison above.
How long does a Saga device run between charges?
On the 2500 mAh cell shared by three of the four models, 20 days at a 1-hour wake interval and over 110 days at 24 hours. Saga Arctic uses a 1200 mAh cell and runs 10 days at a 1-hour interval and over 55 days at 24 hours. The device's NiMH cell is not classed as dangerous goods and recharges over the attached USB-A cable.
Are Saga devices approved for air freight?
Saga devices are approved by more than 200 airlines, and are IATA, FAA and EASA compliant.
Questions about Saga devices?
Tell us what you ship and where, and someone from our team will get back to you.
